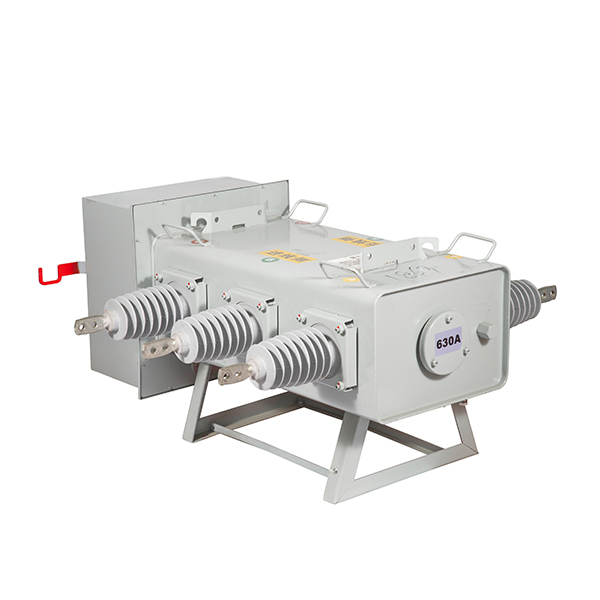

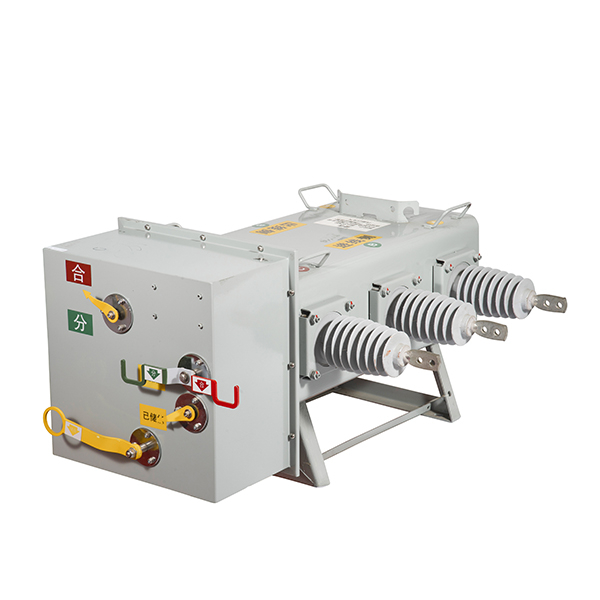

FZW28-12 11kV 12kV Pole Mounted High Voltage Vacuum Load Break Switch
FZW28-12 column high voltage AC vacuum load switch is used in the column installation, with manual and electric operation functions, the switch body is optimized on the basis of Japan Toshiba VSP5-12, and more suitable for my country's distribution network Requirements, this switch is a maintenance-free load switch, using vacuum arc and SF6 gases, and phase insulation medium. Suitable for the responsibility of the 10KV distribution line user entry, it is also possible to apply to the required branch line connection.
Use environment
| Name | unit | Environmental value | |
| Amazing air temperature | Maximum temperature | ℃ | +50 |
| Minimum temperature | -20 | ||
| Maximum temperature difference | K | 30 | |
| altitude | m | ≤3000 | |
| Solar radiation intensity | W / cm2 | 0.1 | |
| Contamination | Ⅳ | ||
| Ice thickness | mm | 10 | |
| humidity | Daily relative humidity average | % | ≤100 |
| Monthly relative humidity average | ≤95 | ||
| Tolerate earthquake | 度 | ≤8 | |
Note: Environmental parameters are exceeded in the previous table, please contact us.
