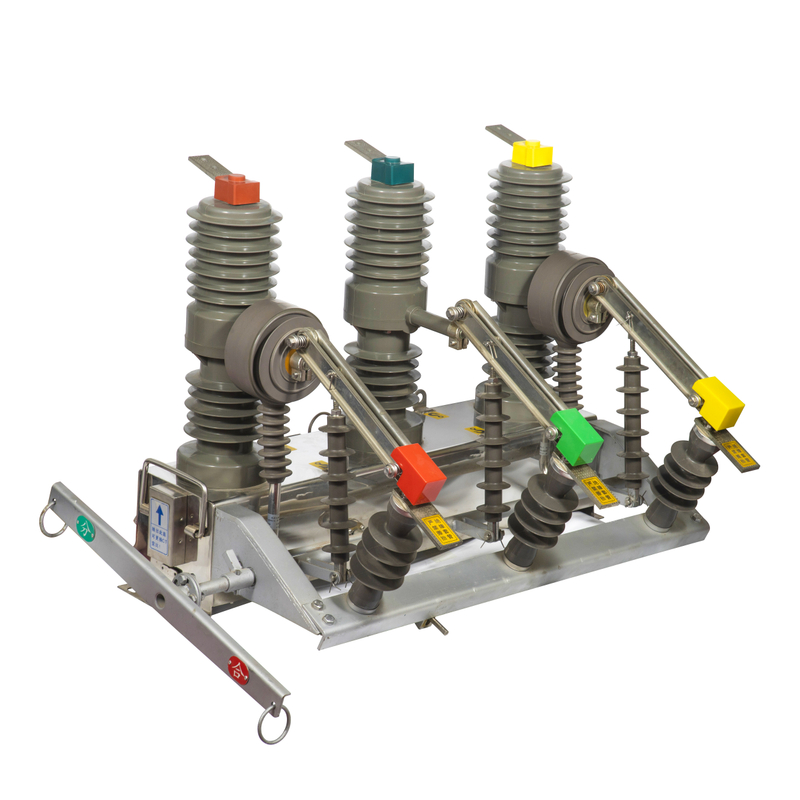

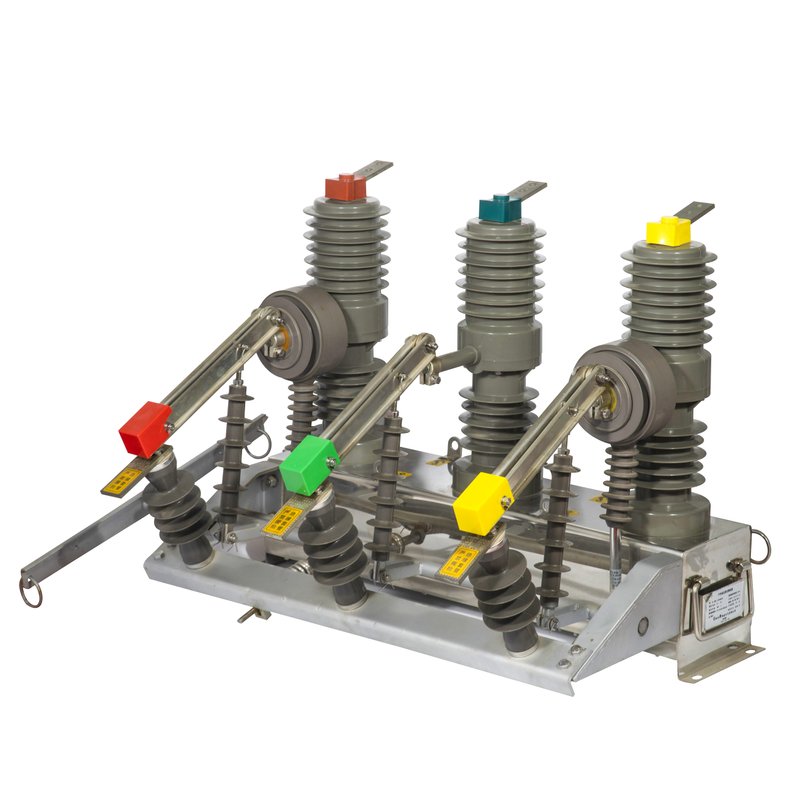

ZW32-12 11kv 12kv Pole Mounted Electrical Switch Vacuum Circuit Breaker

ZW32 outdoor column high-pressure vacuum circuit breaker is a rated voltage of 12kV, three-phase communication 50Hz outdoor high-voltage switching equipment, mainly used to turn off load current, overload current, and short circuit current in power system; suitable for substation and indilla Enterprise power distribution system is used for protection and control, and it is more suitable for rural grid and frequent operation, especially for the renovation of the city network and the farnet, and the access automation function can be realized after the installation of the control box.
Quantity:

ZW32-12 11kv 12kv Pole Mounted Electrical Switch Vacuum Circuit Breaker


ZW32 outdoor column high-pressure vacuum circuit breaker is a rated voltage of 12kV, three-phase communication 50Hz outdoor high-voltage switching equipment, mainly used to turn off load current, overload current, and short circuit current in power system; suitable for substation and indilla Enterprise power distribution system is used for protection and control, and it is more suitable for rural grid and frequent operation, especially for the renovation of the city network and the farnet, and the access automation function can be realized after the installation of the control box.

NameunitEnvironmental value
Amazing air temperatureMaximum temperature+50
Minimum temperature--40
Maximum temperature differenceK30
altitudem≤3000
Solar radiation intensityW / cm20.1
Contamination
Ice thicknessmm10
humidityDaily relative humidity average%≤100
Monthly relative humidity average≤95
Tolerate earthquake≤8

Note: Environmental parameters are exceeded in the previous table, please contact us.



Rated voltageKV12
Rated currentA630/1250
CT parameters
Customized according to customer requirements
Rated frequencyHz50
Rated short (1min) power frequency tolerance voltage (on ground / broken)KV42/48
Rated lightning impact tolerance voltage (on ground / broken)KV75/85
Rated short circuit opening currentka20/25
Rated short-circuitry current (peak)ka50/63
Rated short-term resistance (4S)ka20/25
Rated peak toleranceka50/63
Rated short-circuit current break30
Operating agency
spring
Vacuum circuit breaker mechanical life10000
Enclosure rating
IP67


The circuit breaker uses three-phase pillar structure, and has characters, such as stable and reliable break performance, no fire and explosion, maintenance, small size, light weight, long life, long life, long life, long life, long life, and ECT risk. The circuit breaker uses a sealing structure, the sealing performance is good, and the performance of moisture-proof and anti-prevention is improved, especially in cold and humid.

The indoor epoxy resin is used, which has high and low temperature, ultraviolet linear and anti-aging characterized by silicon gel as a solid insulation method;

The operating mechanism uses a miniaturized spring operating mechanism, which has the low power, open and closing low energy consumption, the direct transmission mode of the mechanism transmission;

Circuit Breaker Opening and Close Operation You can use manual operation, electric operation, or remote operation, can cooperate with the intelligent controller to achieve power distribution automation, and can also cooperate with the repeat controller to make the auto-repeat segmers or;

The circuit breaker can be equipped with three-phase linkage, and some cutters are cut off significantly, and it has a mistable error and circuit breaker body interlocking device.
